二手品
MTE 電抗器 (3Ph, 11A, 4.3mH) II RLW-001106
RLW-001106
TWD
2,100元 / 只
319

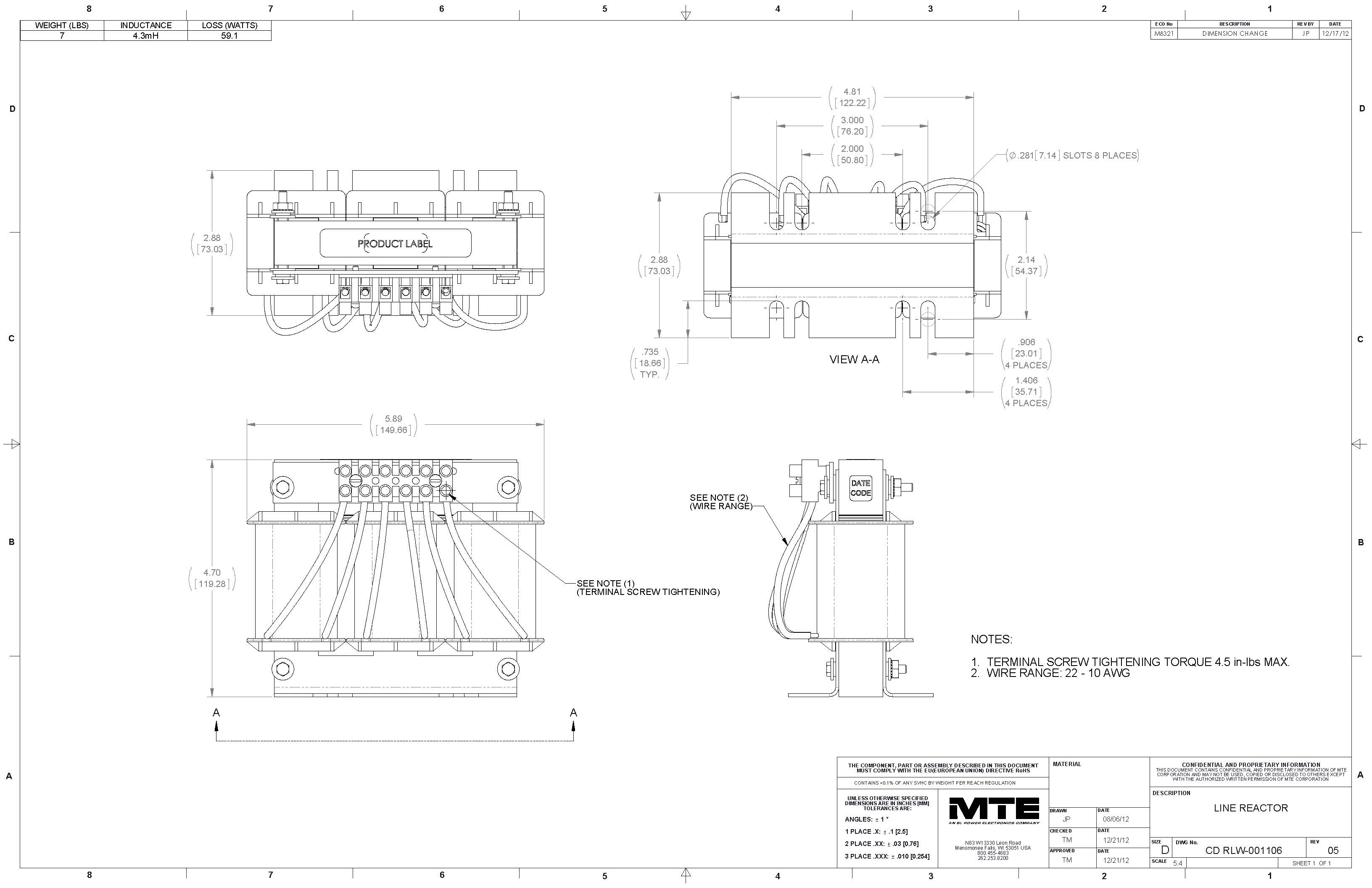

產品概覽和技術數據資料表
RLW Series Information
- 0.5 to 750 Amps
- 280 to 690 VAC
- Adapter Plate
- DIN Rail Mountable
MTE’s RLW Line Reactor is optimally designed for peak performance in a compact and lightweight design. Lower horsepower selection allows for smaller motor protection needs, and they are suitable for application to single phase drives to provide transient protection. The RLW is primarily applied to LINE SIDE applications, but can be applied to the LOAD SIDE as well.
| 屬性 | 值 |
|---|---|
| Manufacturer Series | MTE RLW REACTOR |
| Fundamental Amps | 11A |
| Inductance | 4.3mH |
| Watts Loss | 59.1W |
| Dimensions (W x H x D) | 5.8 in x 6 in x 2.9 in |
保固期限 : 無保固
發票 : 有
訂購後商品將在 7 天之內出貨(除了國定假日)
所有評論
尚無評論
