新品

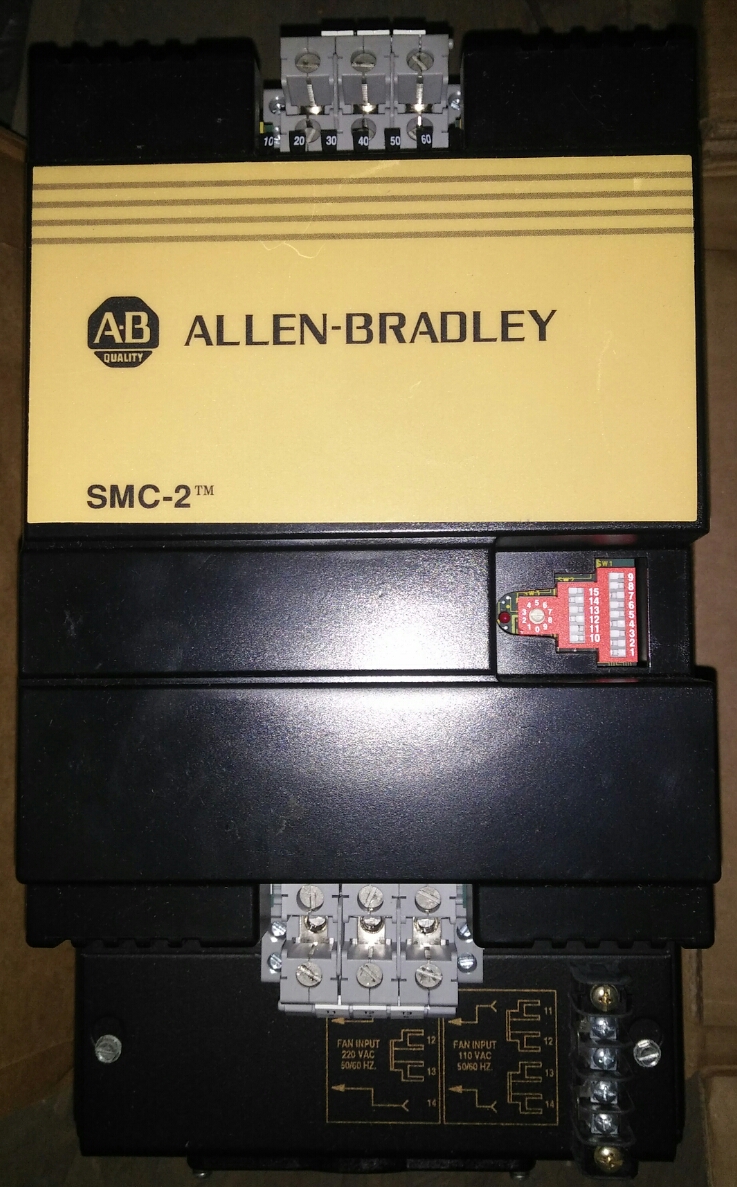

AB SMC-2(馬達緩衝啟動器, 25KW, 230V, 97A, Open type)
150-A97NA-ND
TWD
15,750元 / 台
425
產品概覽和技術數據資料表
The SMC-2™ Controller is a compact, multi-functional, versatile solid-
state controller used in starting standard three-phase squirrel-cage
induction motors. Three standard modes of operation are available
within a single controller:
•Soft Start
•Current Limit Start
•Full Voltage Start
•Optional Soft Stop (Requires Interface Module)
The SMC-2™ Controller is available in eight sizes: 5, 9, 16, 24, 35, 54,
68, and 97 A. It is offered in three voltage ranges: 200…230V,
380…460V, and 500…575V, 50/60 Hz.
The SMC-2™ Controller can be used in two configurations: as a series
controller and as a motor controller with an interface option.

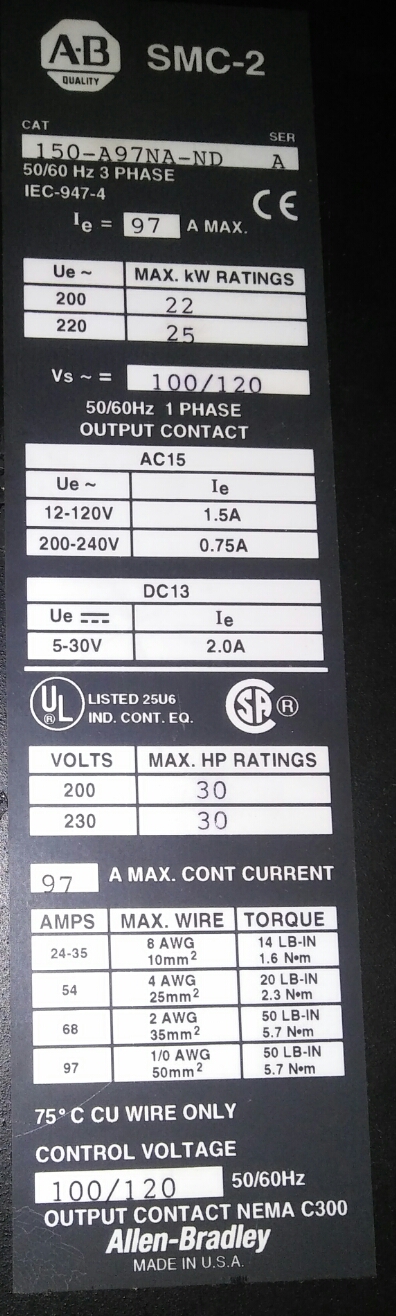

| 屬性 | 值 |
|---|---|
| Manufacturer Series | Allen-Bradley SMC-2 |
| Power Rating | 25KW |
| Voltage Rating | 200~230V AC |
| Current Rating | 97A |
| Control Voltage | 100…120V (+10%, –15%), 50 and 60 Hz, single-phase |
| Enclosure Type | Open type |
保固期限 : 無保固
發票 : 有
訂購後商品將在 7 天之內出貨(除了國定假日)
