VERIS CDE Duct CO2 Sensor (管道CO2濃度偵測器) ll CDE
CDE
TWD
4,422元 / 台
1412
產品概覽和技術數據資料表

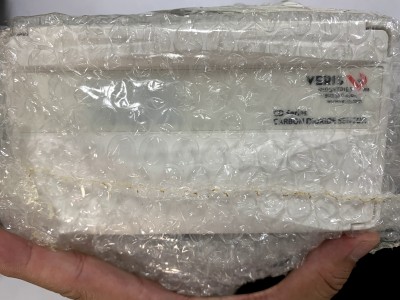

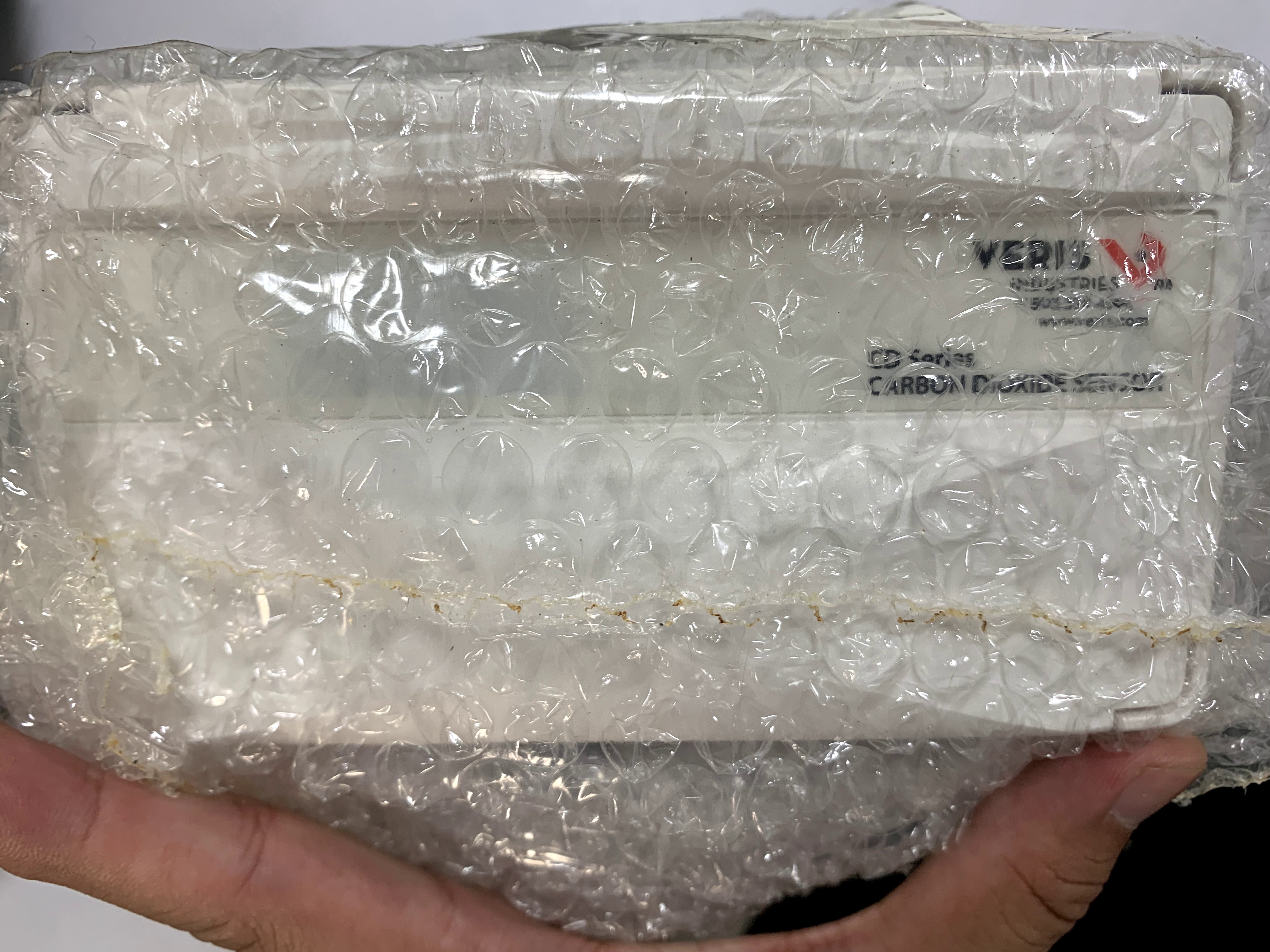

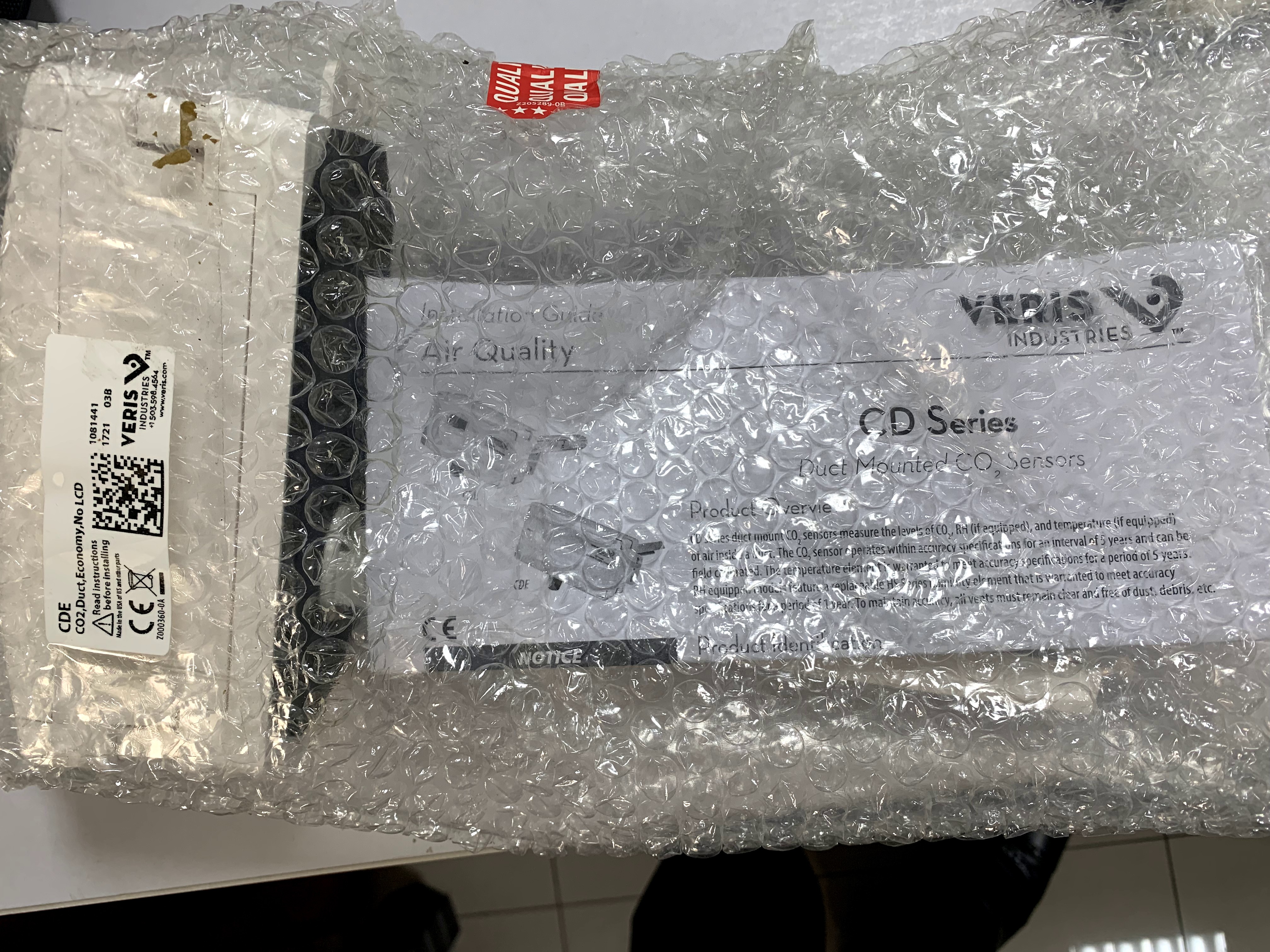

工程餘料，包裝良好，無使用過，測試功能正常，附安裝料件
| 屬性 | 值 |
|---|---|
| Input Power | Class 2; 20 to 30 Vdc/24 AC 50/60 Hz; 100 mA max. |
| Analog Output | 4 to 20 mA (clipped & capped)/0 to 10 Vdc (selectable) |
| Terminal Block Torque | 0.5 to 0.6 N-m (4.4 to 5.3 in-lbf ) max |
| Terminal Block Wire Size | 24 to 12 AWG (0.25 to 2.5mm2) |
| Sensor Type | Non-dispersive infrared, diffusion sampling |
| Output Range | 0 to 2000 ppm |
| Accuracy | ±30 ppm ±2% of measured value |
| Repeatability | ±20 ppm ±1% of the measured value |
| Response Time | <60 seconds for 90% step change |
保固期限 : 7天
發票 : 有
訂購後商品將在 3 天之內出貨(除了國定假日)
